Chromium Plating Coating Thickness Measurement Flexible Powder Coat Thickness Gauge

Name: Chromium Plating Coating Thickness Measurement Flexible Powder Coat Thickness Gauge
Brand: lingyang
Price: 1 USD

Buy cheap Chromium Plating Coating Thickness Measurement Flexible Powder Coat Thickness Gauge product

Brand Name : lingyang

Model Number : LY-800FC

Certification : CNAS,SGS

Place of Origin : Hunan,China

MOQ : 1 Piece

Price : Price to be agreed

Payment Terms : L/C, T/T

Supply Ability : 20000pcs, per year

Delivery Time : 1-2 work days

Packaging Details : carton,250x200x70mm,0.5kg

Measurement : Coating Thickness

Measurement Principle : Magnetic Induction

Probe Durability : Over 500,000 cycles

Test Speed : 0.3 seconds per measurement

Accuracy : < ±2% of reading + 1 μm

Patented probe : Suitable for a wide range of applications

Material : ABS

Color : Green

Contact Now

1. Features

1.1. Adopt high-speed MCU and advanced algorithm to ensure the accuracy and efficiency of measurement. The instrument supports fast measurement and continuous measurement, and the measurement speed can reach 0.3s/time.

1.2.It meets the standards of ISO2178,DIN,ASTM and BS..

1.3. The wear-resistant metal probe can ensure stable data when measuring on hard or rough surfaces, and the probe wears more than 500,000 times.

1.4.Use LCD display to ensure good visual effect.

2. Technical parameters

* Standard measuring range:0~1500μm, Resolution: 0.1μm (0-99.9μm), 1μm (100-1500μm)

* Measurement Accuracy : ±2%H+1μm

* Thinnest Substrate: 0.3mm

* Minimum Curvature: convex 5mm/concave 25mm

* Power Supply: 2×1.5v AAA batteries

* Unit Options : μm / mil

* Measurement Mode: Single/Continuous

* Product Size: 101×61×26mm

* Product Weight: 54g (without batteries)

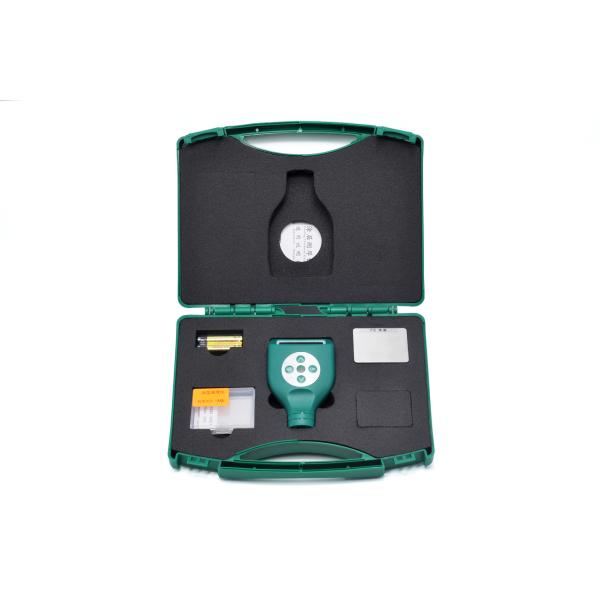

3.Package list

* Main machine × 1

* Iron substrate × 1

* AAA battery × 2 ( Not included if by air )

* Standard films × 5 (50 100 250 500 1000μm)

* Manual × 1

* Warranty Card × 1

* Packing box × 1
